Types of Cable Trays

Cable trays are capable of supporting all types of wiring: such as

High Voltage Power Lines.

Power Distribution Cables

Control cables

Telecommunication cables

Fiber Optical Cables

Purpose:

Cable trays are components of support systems for power and communications cables and wires. A cable tray system supports and protects both power and signal cables and facilitates upgrading, expanding, reconfiguring, or relocating networks.

Most of the cable tray systems are open, allowing efficient heat dissipation and easy access for replacement and repairs. Although typically suspended from ceilings or affixed to walls, some cable tray systems are suitable for underfloor use.

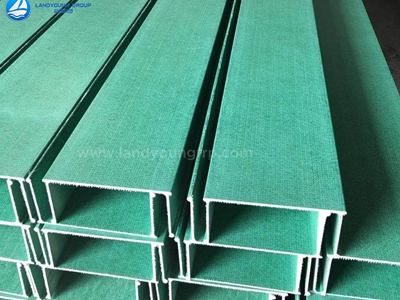

 GRP Cable Tray

Types of Cable Trays:

The following are popular cable tray types.

Ladder-type

Perforated type

Solid bottom type

Wire mesh

Channel type

An engineer or designer will usually specify the type of cable tray that has the features to suit the project. It depends on the situation and the environment.

The selection of cable trays depends upon the number of cables, size, spacing, and weight of cable in the tray.

Ladder Cable Tray

The ladder cable tray has two side rails connected by rungs. This type of cable tray is effective because the ladder rungs give you easy accessibility to the cables, from the top or bottom. The rungs of the ladder cable trays provide convenient anchors for tying down the cables in the non-horizontal cable tray runs or where the positions of the cables must be maintained in the horizontal cable tray runs.

Perforated Cable Tray

The perforated cable tray consists of a ventilated bottom with side rails. It provides more support to cables than the ladder-type,

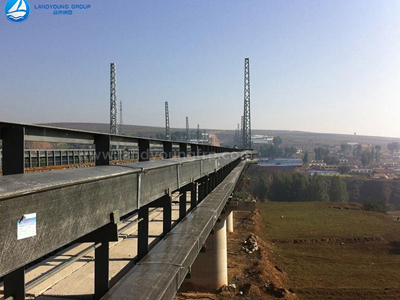

 GRP Cable Tray

sp;

Solid-bottom Cable Tray

Solid-bottom Cable trays for fiber-optic cable installations where drooping of cables may affect system performance, solid-bottom (non-ventilated) cable trays are preferred. However, the main reason for selecting solid-bottom trays is a concern for electromagnetic/ radio-frequency interference protection.

Wire Mesh Cable Tray

Wire mesh cable tray, also called basket cable tray, is a kind of cable tray made of stainless steel wires by welding wires together, forming a basket-like mesh. Cable Trays are mainly used for low voltage, telecommunication, and fiber optic cables supported on short spans.

Channel Cable Tray

Channel cable tray nothing more than a metal tray that can be used for very small cable installations.”

Materials

1. Metallic

Aluminum: Resists corrosion; excellent strength-to-weight ratio. Aluminum is most commonly used because it is lightweight.

Steel: Electric shielding; low thermal expansion

Stainless steel: Superior corrosion resistance; withstands high temperatures.

2. Non-Metallic

Fiberglass: Nonconductive; resists corrosion; lightweight

Precautions:

The most important issue is to ensure that the bend radius for the fiber-optic or coaxial cable is maintained within the standards. Combustible dust and clutter may accumulate if the trays are not routinely checked and kept clean.

Advantages:

Less expensive: One of the big advantages that using a cable tray has is that it costs a lot less than other methods of protecting wiring on the production floor.

Maintenance: Cable is instantly visible for maintenance checks, changing of cables is easy because cables can enter or exit the tray at any point of the system.

Safety: Regular housekeeping is important for safety, as cable trays are often installed in hard-to-reach places.
