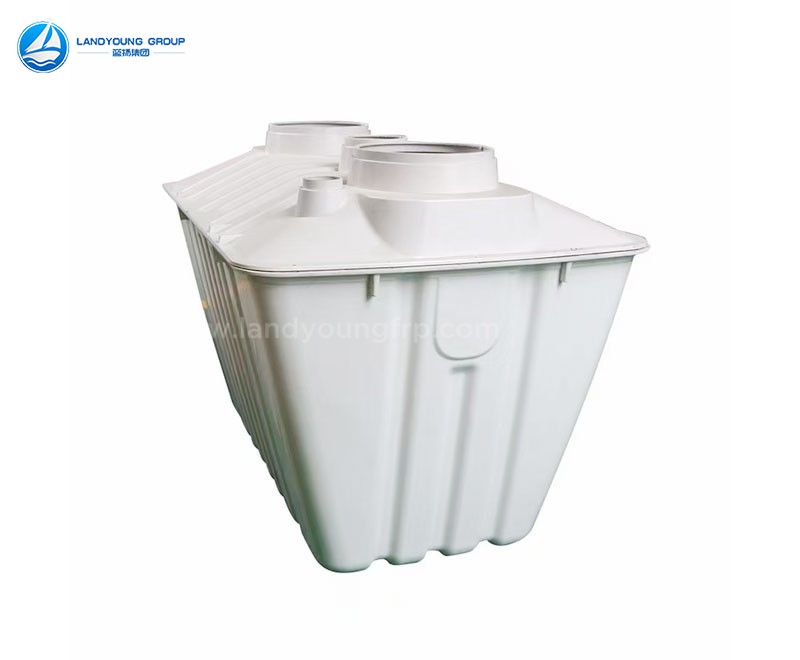

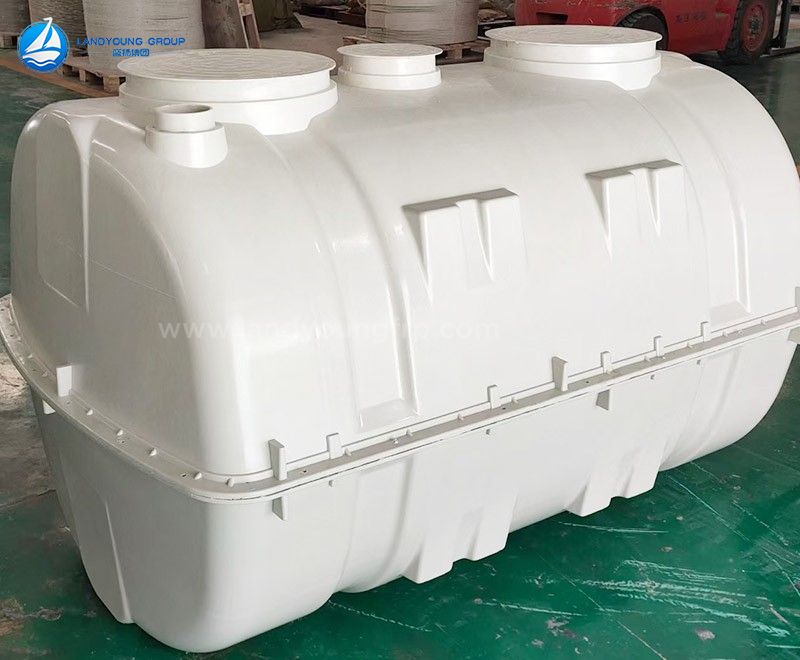

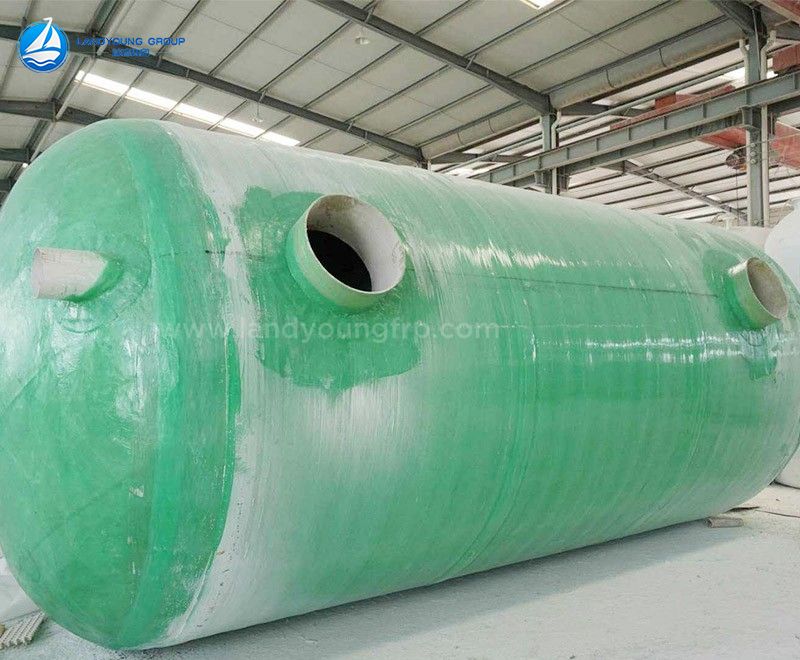

FRP septic tank is a glass fiber reinforced plastic storage tank specially designed for domestic sewage treatment.
LANDYOUNG FRP septic tanks are made of high-strength glass fiber composite material of glass fiber reinforced unsaturated polyester resin as the main material, and is made of advanced glass fiber reinforced plastic winding technology to produce simplified and concave-convex wheel-shaped head structure, which is specially used to deal with life sewage equipment. The glass fiber reinforced plastic septic tank is composed of two parts: one is the sedimentation area, and the other is the treatment area.
The glass fiber reinforced plastic septic tank is a specially designed structure with extremely high impact resistance and high strength
The glass fiber reinforced plastic septic tank has a compact structure and a reasonable structure, which saves land resources.
Lighter in texture, convenient and fast in transportation and installation, and not affected by environmental factors.
Integrated production, advanced technology, no cracks, no leakage
While the performance of this product is greatly improved, the cost and capital are also greatly reduced.
This product uses polymer composite materials, which are resistant to oxidation, acid and alkali, not easy to aging, deformation, and corrosion resistance.
FRP septic tanks are widely used for the preliminary treatment of domestic and fecal sewage in residential buildings, office buildings, schools, nursing homes, enterprise workshops, living rooms and other industrial and civil buildings.
Performance
Thickness /mm | Rakushin strength/Mpa | Curve strength/Mpa |
≥3.2-5.0 | ≥60 | ≥109 |
>5.0-6.5 | ≥83 | ≥127 |
>6.5-10.0 | ≥93 | ≥137 |
>10.0 | ≥108 | ≥147 |
Specification
Volume (m³) | Diameter D (mm) | Length L (mm) |
2 | 1200 | 2200 |
4 | 1500 | 2300 |
6 | 1800 | 2400 |
9 | 1800 | 3600 |
12 | 1800 | 4800 |
16 | 2200 | 4300 |
20 | 2200 | 5400 |
25 | 2400 | 5600 |
30 | 2400 | 6700 |
40 | 2800 | 6600 |
50 | 2800 | 8300 |
60 | 3000 | 8700 |
75 | 3000 | 10000 |
100 | 3500 | 10500 |
